Disc Harrows

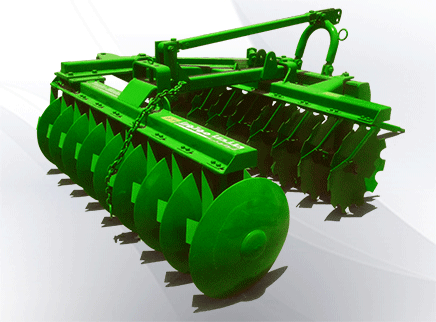

• Disk Harrow consists of two disc groups, the front group is equipped with serrated discs; the rear group is equipped with smooth discs to soften the soil. Operating width ranges from 2 to 2.45 meters.

Features :

1. Short length for transport.
2. Front & rear bodies connected by an articulated system, with transversal and longitudinal adjustment.
3. Heavy duty scrapers with independent regulation.
4. Front and rear bodies in offset connected with rigid assemblages mechanism.
5. 30mm square disc axles.
6. Lubricated bearings.
7. Discs are plane in rear row and notched in front row.
8. Manual system for angle adjustment, with lubricate telescopic rod.
9. Discs spacing: 9” – 230 mm.
